Size Exclusion Resins

Download for More Info

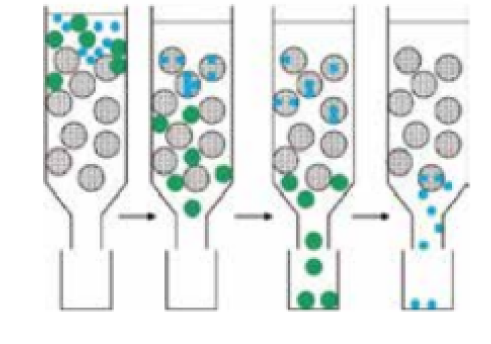

Size exclusion resins are based on the size of the target molecules, from the largest to the smallest peak in order to achieve the purpose of separation.

  • Size exclusion resins are often used in the subsequent purification stage with less impurities.

  • Size exclusion resins are used for the purification of smaller samples.

  • In group separation (such as desalination) can also be used in the coarse purification stage.

  • The addition of 150 mM NaCl to the buffer can effectively reduce the non-specific adsorption of the target protein.

Ion Exchange Resins

Download for More Info

Ion exchange resins is one of the most widely used methods for protein separation and purification. Different proteins have different isoelectric points, different molecular sizes, different charge density distributions in the same mobile phase, different charge amounts, different binding strengths to ion exchange resin with opposite charges, and different retention times when eluting in the mobile phase, thus allowing separation.

VDO supplies 6 types of ligands, which are DEAE, CM, Q, SP, Focurose FF, Focurose HF and Focurose HPR , which are a combination of 3 substrates and a variety of ion exchange resin to precisely match the downstream technology of bioprocesses.

Hydrophobic Interaction Resins

Download for More Info

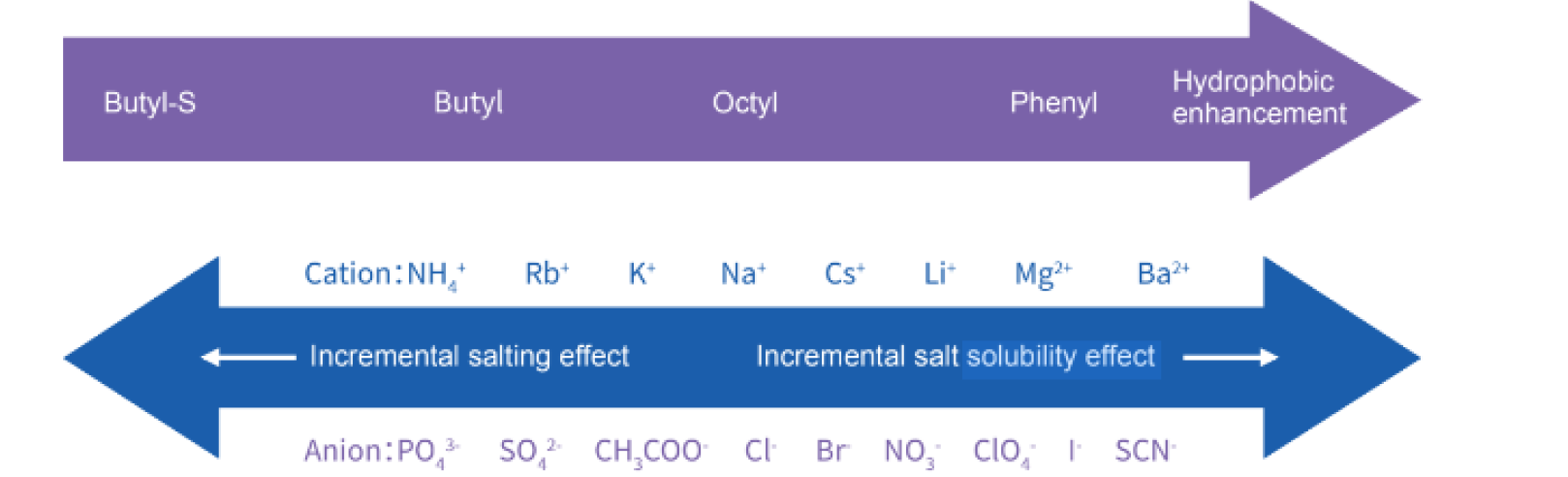

Hydrophobic interaction resins separates proteins based on differences in hydrophobicity, i.e., based on reversible interactions between proteins and hydrophobic groups on the surface of hydrophobic interaction resins.

Hydrophobicity isenhanced at high ionic strengths and therefore binding in a high ionic strength environment is usually eluted by reducing the ionic strength. The unique adsorption separation mode makes hydrophobic interaction resins an ideal purification method after ammonium sulfate chromatography or after ion exchange high salt elution.

Affinity Resins

Download for More Info

Affinity resins were established and developed based on the principle of specific adsorption between biomolecules and other ligand molecules (e.g. antigen and antibody, enzyme and substrate, hormone and receptor, complementary chain in nucleicacid, polysaccharide and protein complex, etc.). The purification of target molecules is achieved by specific adsorption between the ligand on the medium and the target molecule. Due to this specific force, affinity resins are characterized by high selectivity and high activity recovery.

Product Number
Product Name
Spec
Ion Loading μmol/mL
Particle Size Range μm
Maximum flow rate (cm/h)
Withstand Pressure Mpa
pH Stability Long-term (Shot-term)
Application
HL060301025M HL060301100M HL060301500M HL060301001L HL060301005L HL060301020L
SP Focurose FF
25mL 100mL 500mL 1L 5L 20L
180-250 H+
45-165
700
≤0.3
4-13 (3-14)
Fast, high throughput purification
HL060303025M HL060303100M HL060303500M HL060303001L HL060303005L HL060303020L
CM Focurose FF
25mL 100mL 500mL 1L 5L 20L
90-130 H+
45-165
700
≤0.3
4-13 (2-14)
Fast, high throughput purification
HL060306025M HL060306100M HL060306500M HL060306001L HL060306005L HL060306020L
Q Focurose FF
25mL 100mL 500mL 1L 5L 20L
180-250 Cl
45-165
700
≤0.3
2-12 (2-14)
Fast, high throughput purification
